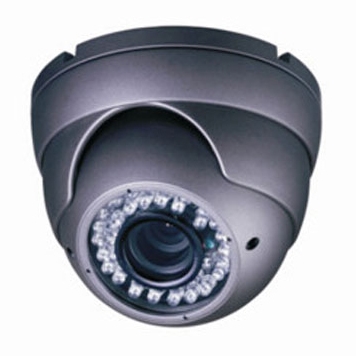

30M 36LEDs AHD Metal Dome Camera
Key Features:
◆25-30M IR Distance
◆36pcs Ø5mm IR LEDs
◆2.8-12 mm Vari-focal Lens Optional
◆3DNR, D-DWR, HLC, Exposure control for IR light, Motion Detection
◆IR vandel-proof
◆3-Axis bracket
Specification:
|
Model |
KH-W100H3 |
KH-W101H3 |
KH-W131H3 |
KH-W201H3 |
KH-W202H3 |
|
Image Sensor |
1/4" CMOS |
1/4" CMOS LUX |
1/3" SONY LUX |
1/2.5" CMOS LUX |
1/2.5" SONY LUX |
|
Effective Pixels |
1.0 MP |
1.0 MP |
1.3 MP |
2.0 MP |
2.0 MP |
|
Image Resolution |
1280X720P |
1280X720P |
1280x960P |
1280X1080P |
1280X1080P |
|
IR LEDs |
36pcs Ø5mm IR LEDs |
||||
|
IR Distance |
25-30M |
||||
|
Lens |
2.8-12mm Vari-focal Lens |
||||
|
Color |
Black/ White/ Grey Option |
||||
|
S/N Ratio |
>58dB |
||||
|
Shutter |
Auto/1/50(1/60)seconds to 1/100,000 seconds |
||||
|
WDR |
D-WDR |
||||
|
DNR |
2D-DNR/3D-DNR |
||||
|
Minimum illuminator |
0.01LUX/F1.2 |
0.001LUX/F1.2 |
|||
|
White Balance |
ATW/AWC-SET/Manual/AWB |
||||
|
AGC |
AUTO |
||||
|
BLC |
OFF/BLC/HSBLC |
||||
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
||||
|
synchronization System |
Internal Synchronization |
||||
|
Video Output |
AHD (1.0VP) |
||||
|
Voltage |
DC12V (9V ~ 15V) |
||||
|
Operating Environment |
-20°C~60°C / 10% ~ 95%RH ( AUTO Temperature Control Optional) |
||||
|
Dimension |
12x10cm |
||||
|
Weight |
0.85kg |
||||
